HXEVOIIPRO 6K HD Camera 25KM Cruising Long Range UAV 40 Minutes Battery Life Industrial Inspection Drone
Inspection Drone Features

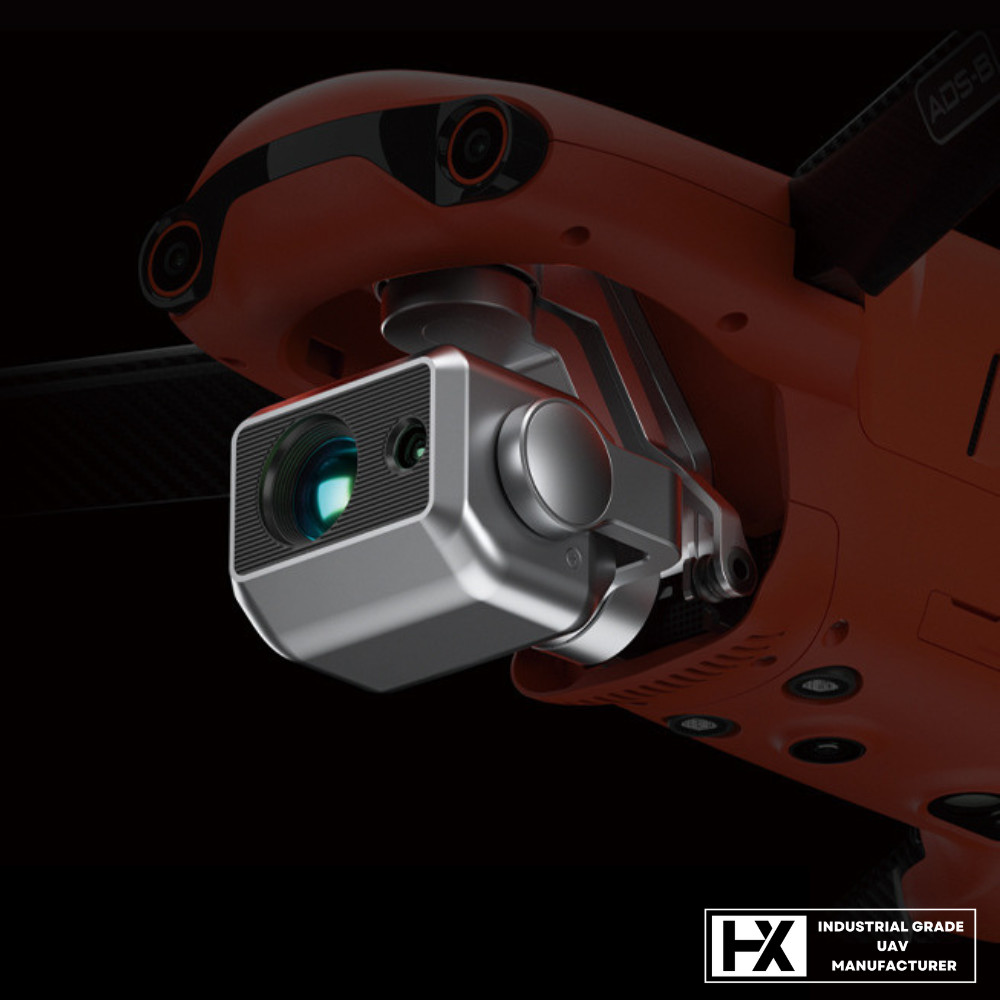

*6K HD Camera
HXEVOIIPRO adopts Sony's new generation 20-megapixel CMOS image sensor and supports 6K video resolution. Industrial drone cameras have a larger dynamic range, stronger noise suppression capabilities, and higher frame rates.
*F/2.8-F/11 Adjustable Aperture
Regardless of whether the industrial drone is in a bright or dim lighting environment, it can obtain excellent image performance by adjusting the aperture and break the light limit.
*Share Live Video Instantly
It supports real-time output of aerial images through multi-port HDMI high-definition to meet the needs of screen projection monitoring and live video broadcasting.
The captured video does not require post-compositing. 6K motion time-lapse video is released immediately after shooting, and JPEG/RAW format photos are recorded at the same time.
*Simultaneous Recognition Of 64 Objects
No matter how small the target is, it can achieve fast and accurate locking. The industrial UAV gimbal can identify 64 objects at the same time, model the position and speed of the target at the same time, accurately predict the trajectory of the target, and realize continuous tracking.
| Industrial Drone Basic parameters | |
| Takeoff Weight | 1.11KG |
| Maximum Take-off Weight | 2KG |
| Dimensions (l*w*h) |
508*634*111mm (with paddle); 258*368*111mm (without paddle) |
| Wheelbase | 397 mm |
| Aircraft Battery | 7100 mAh |
|
Maximum Flight Time (no Wind Environment) |
40 minutes |
|
Maximum Hovering Time (no Wind Environment) |
35 minutes |
|
Maximum Horizontal Flight Speed (no Wind Near Sea Level) |
20m/s |
| Maximum Ascent Speed | 8 m/s |
| Maximum Descent Speed | 4 m/s |
|
Maximum Cruising Range (no Wind Environment) |
25KM |
| Maximum Take-off Altitude | 7000m |
| Maximum Wind Resistance | Level 8 |
| Working Temperature | -10°C to 40°C |
| Working Frequency | 2.400 GHz to 2.4835 GHz; 5.725 GHz to 5.850 GHz; |
| Transmission Power |
2.4-2 4835GHz |
| Hover Accuracy |
vertical:
|
| Industrial Drone Camera Parameters | |
| Image Sensor | 1" CMOS |
| Effective Pixels | 20 million |
| Angle Of View | 82° |
| Lens | Equivalent focal length: 28.6 mm Aperture: f/2.8-f/11 Focus range: 1m to infinity (with auto focus) |
| Iso Range | Video: 100-6400 (automatic) Photo: 100-12800 (automatic) |
| Zoom | 1-16x (maximum 3x lossless zoom) |
| Photo Shooting Mode |
Single Shot
|
| Photo Resolution | 5472 3648 (3:2) 5472:3076 (16:9) 3840 2160 (16:9) |
| Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Video Resolution | 6K - 5472*3076 p30/p25/p24 4K - 3840*2160 p60/p50/p48/p30/p25/p24 2.7K - 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P - 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Video Maximum Bit Rate | 120Mbps |
*We support Customizing Industrial Drones(UAV) according to your work scene needs.
*HX Drone Factory started the drone business in 2017, reliable R&D capability and manufacturing capability are our core competitiveness.
*The goods can be sent to all over the world by international express within 7 days at the fastest.
*We have a 7*24 Hours After-Sales Service Team, which can solve various problems you encounter through online chat and video conference.
