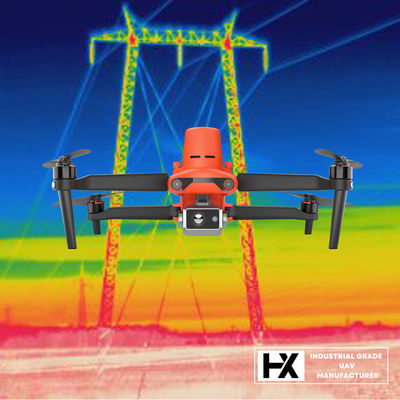

HX640T Industrial Pipeline Power Station Power Inspection Patrol Military Drone With Thermal Imaging Camera PTZ Pod

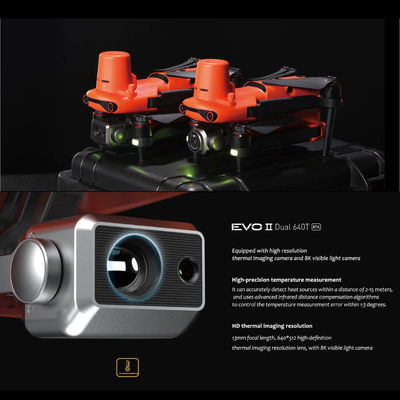

Industrial UAV HX640T is equipped with a 640×512 thermal imaging camera and an 8K visible light camera.
which can take thermal imaging and visible light images at the same time, and support fused display of the two, to provide more detailed images.

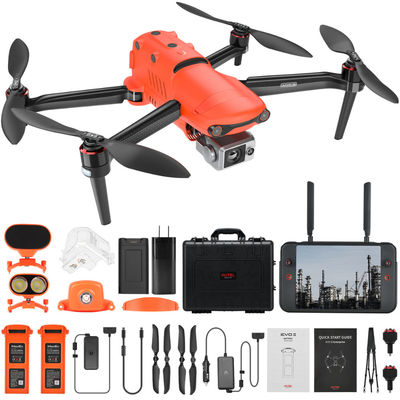

EVO II Pro RTK is equipped with a1-inch CMOS blessed 6K resolution ultra-high-definition lens, being easy to achieve professional-level imaging experience.
| Thermal Imaging Drone Camera Specifications HX640T |
|
|---|---|
| Infrared Thermal Imaging Sensor | Uncooled infrared |
| Sensor Resolution | 640x512 |
| Photo Resolution | Infrared mode: 640* 512 PIP: 1920*1080, 1280*720 |
| Video Format | MOV / MP4 (Support H.264/H.265) |
| Video Resolution | 640* 51230fps |
| Accurate Temperature Measurement Distance | 2-20meters |
| Pixel Size | 12um |
| Wavelength Range | 8~14um |
| Focal Length | 13mm |
| Angle Of View | H33°V26° |
| Zoom | 1X-16X |
| Photo Shooting Mode | Single shooting, continuous shooting, timed shooting |
| Temperature Range | High Gain Mode: 20° to +150° Low gain mode: 0° to +550° |
|
Temperature Measurement Accuracy |
±3°C or ±3% of reading (whichever is greater) @ambient temperature 20°C~60°C |
