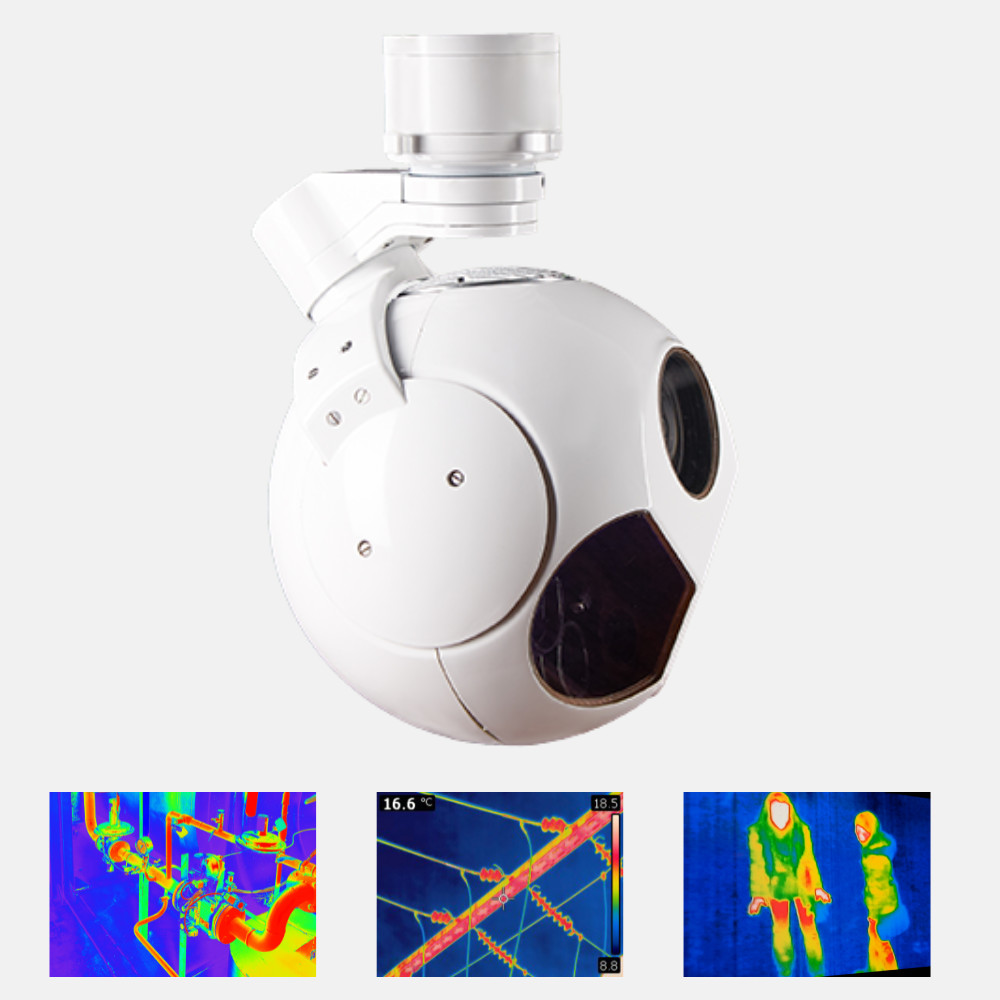

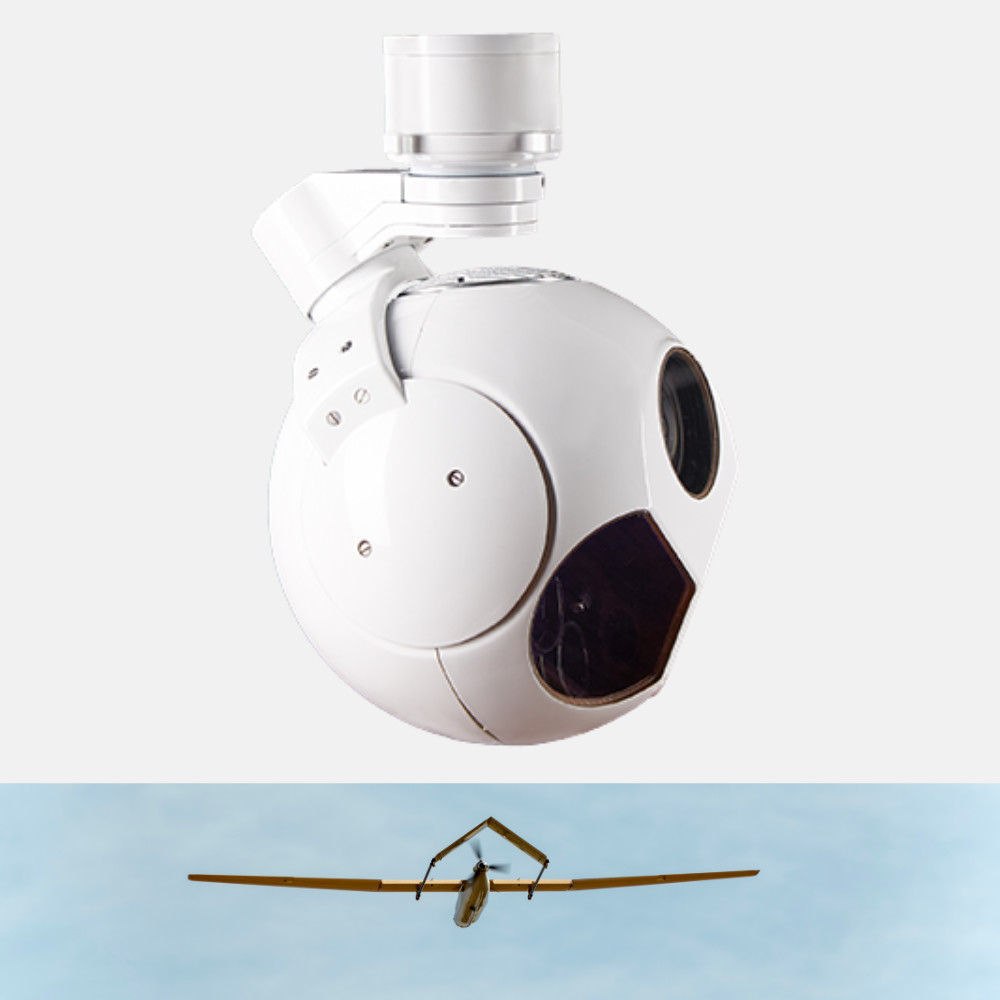

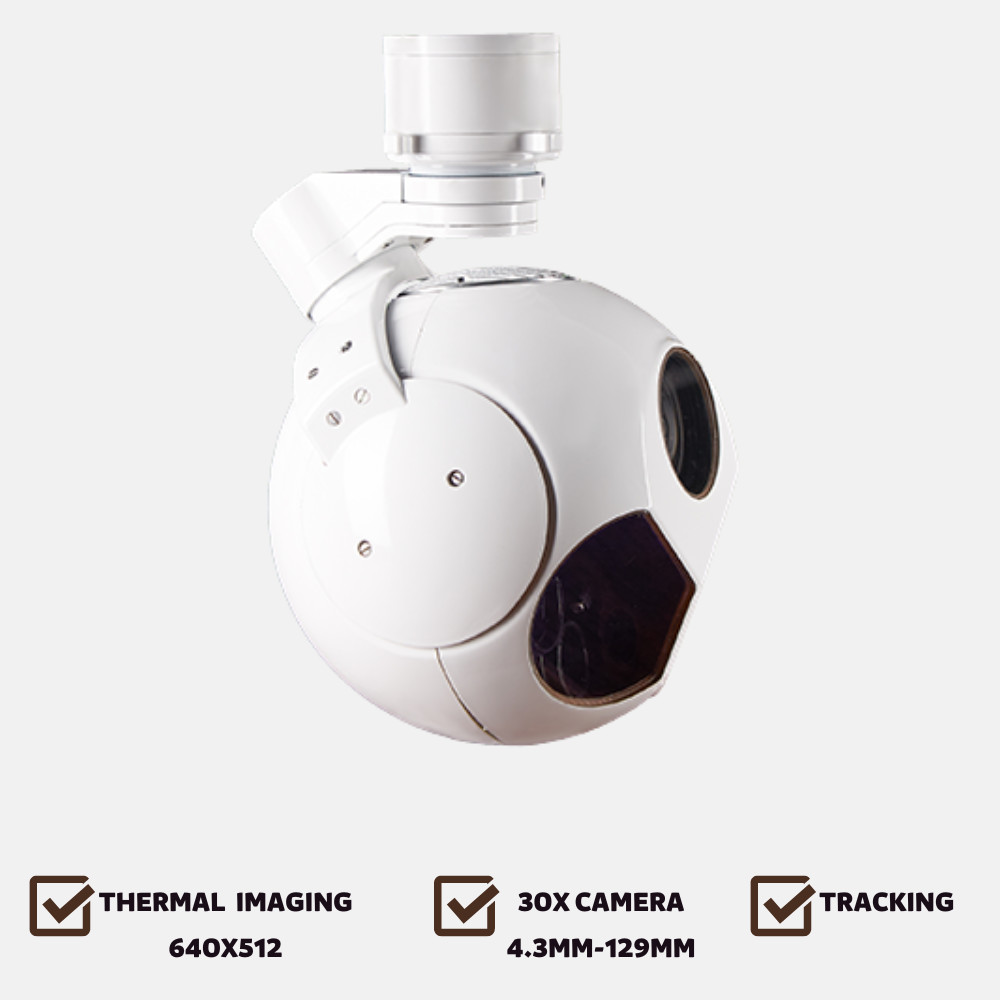

1KG Weight UAV Pod Monitoring Camera Uncooled Infrared Thermal Camera HXTS01DT

1
MOQ
1KG Weight UAV Pod Monitoring Camera Uncooled Infrared Thermal Camera HXTS01DT
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Drone Pod Camera; UAV Pod Camera
Material: Magnesium Alloy
Working Band: 0.4μm~0.9μm
Number Of Detector Pixels: 1920×1080
Focal Distance: 4.3mm ~ 129mm, Optical 30X Continuous Zoom
Continuous Zoom Horizontal Field Of View: 63.7º~2.3º
Video Output: HD-SDI、1080P、30Hz
Weight: ≤860g
High Light:

UAV Pod Monitoring Camera

,

Uncooled Infrared Uav Pod

,

1KG Drone Thermal Camera pod

Basic Infomation
Place of Origin: China
Brand Name: Customized
Certification: CE,FC
Model Number: HXTS01DT
Payment & Shipping Terms
Packaging Details: Packaging Specific To Drone Pods Camera
Delivery Time: 7
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Sets/ Month
Product Description



HXTS01DT 1KG Weight 8µM~14µM Long Wave Uncooled Infrared Thermal Imaging 15KM Vehicle Detection Range 640X512 Drone Pod





Features

Using a three-axis stable platform, install a conductive slip ring to achieve 360° continuous rotation
Built-in 30 times high-definition visible light camera, long-wave uncooled infrared imaging components
Mainly used in airborne ground imaging detection, identification, tracking, positioning, etc.





Using high-definition visible light, long-wave uncooled infrared dual-light imaging
High-precision boresight stabilization function
Capable of detecting and identifying ground targets
With search, track, lock, guide and other working modes
With character overlay customization and display function
With target positioning function
With self-test and fault diagnosis function
With laser ranging function





360 Degree Continuous Rotation

The HXTS01 drone pod camera adopts a two-axis gyro-stabilized platform, and a conductive slip ring is installed to achieve 360-degree continuous rotation.



30X High-Definition Visible Light Camera

The drone pod has a built-in 30x high-definition visible light camera.



Application Industry Scenario

This UAV pod camera is mainly used for airborne ground imaging detection, identification, tracking, etc., to meet the needs of different industrial scenarios such as aerial surveying, monitoring, and investigation.







Physical and electrical performance parameters



Measure



≤Φ120mm×183mm



Weight



≤860g



Working temperature



-20℃~60℃



Communication interface



1-way RS422



Video interface



1 channel HD-SDI





1KG Weight UAV Pod Monitoring Camera Uncooled Infrared Thermal Camera HXTS01DT 01KG Weight UAV Pod Monitoring Camera Uncooled Infrared Thermal Camera HXTS01DT 11KG Weight UAV Pod Monitoring Camera Uncooled Infrared Thermal Camera HXTS01DT 2







Why Choose Us?



*We support Customizing Drone Pod Camera according to your work scene needs.



*HX Drone Factory started the drone business in 2017, reliable R&D capability and manufacturing capability are our core competitiveness.



*The goods can be sent to all over the world by international express within 7 days at the fastest.



*We have a 7*24 Hours After-Sales Service Team, which can solve various problems you encounter through online chat and video conference.



1KG Weight UAV Pod Monitoring Camera Uncooled Infrared Thermal Camera HXTS01DT 3
