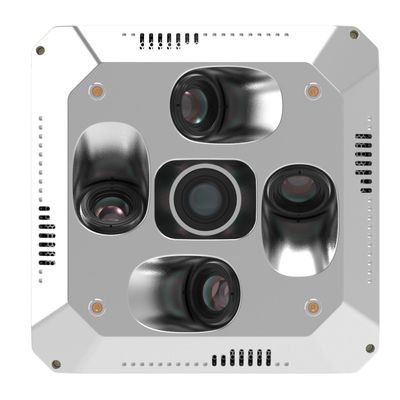

HXDG4M&DG6M 1KG Weight 210 Million Pixel 3D Modeling Mapping Inspection 5Eyes Camera Match DJI UAV PTZ Drone VTOL Gimbal

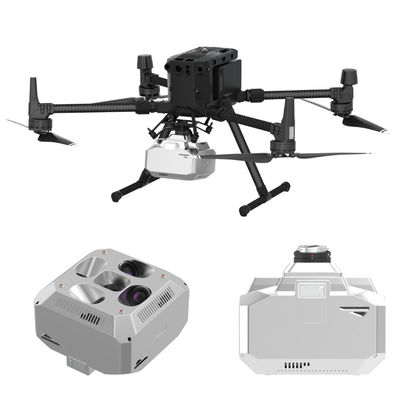

Compatible with DJI M210 V2 series, M300 series and other mainstream UAVs
HXDG4M&DG6M Drone Power Gimbal Camera Core Features
Extra-low dispersion lens
reduce the optical aberration reduce the RMS of the reprojection error
Backside-illuminated full-frame CMOS Enable high light sensitivity Extend dynamic range
Work efficiency is 15~20% higher than half-frame oblique cameras
Specially designed core components Ensure long-term operation
In every extreme environments
Small and light
Multiple communication methods Easily integrated with mainstream UAVs
40/56mm focal length lens Master every scenarios One for all, all in one
Technical specifications
All technical details deliver high performance
|
Drone Power Gimbal Camera Technical specifications |
||
|---|---|---|
|
Camera model |
DG4M |
DG6M |
|
Pixels per lens |
42MP |
61MP |
|
Total pixels |
210MP |
305MP |
|
Pixel size |
4.5μm |
3.7μm |
|
Focal length |
Ortho 40mm /oblique 56mm |
Ortho 40mm /Oblique 56mm |
|
Weight |
1050g |
|
|
CMOS |
Full frame |
|
|
Dimension |
155mm×155mm×104mm |
|
|
Min. exposure interval |
1s |
|
|
Shutter type |
Mechanical global shutter |
|
|
Shutter service life |
500K times |
|
|
Data transfer speed |
>300MB/s |
|
|
Application flying platforms |
M210 V2 series, M300 series and other mainstream UAVs |
|
|
Operating temperature |
-20°C—65°C |
|
|
Data preprocessing software |
Skyscanner(data preprocessing software) |
|
Operation Efficiency
The visible efficiency, the reliable deliverables
|
Fixed wing+DG4M |
|||||
|---|---|---|---|---|---|
|
GSD(cm) |
2 |
2.5 |
3 |
4 |
5 |
|
Flight height(m) |
177 |
221 |
265 |
354 |
443 |
|
Distance per flight(km) |
100 |
100 |
100 |
100 |
100 |
|
Coverage per flight(km2) |
3.61 |
4.41 |
5.52 |
7.29 |
9.61 |
|
No. of images per flight |
18450 |
14800 |
12775 |
9600 |
7965 |
|
No. of flights per day |
4 |
4 |
4 |
4 |
4 |
|
Coverage per day(km2) |
14.44 |
17.64 |
22.08 |
29.16 |
38.44 |
|
Rotary drone+DG4M |
|||||
|---|---|---|---|---|---|
|
GSD(cm) |
1 |
2 |
3 |
4 |
5 |
|
Flight height(m) |
88 |
177 |
265 |
354 |
443 |
|
Coverage per flight(km2) |
0.33 |
0.64 |
1 |
1.21 |
1.44 |
|
No. of images per flight |
7125 |
3420 |
2400 |
1690 |
1380 |
|
No. of flights per day |
12 |
12 |
12 |
12 |
12 |
|
Coverage per day(km2) |
3.96 |
7.68 |
12.00 |
14.52 |
17.28 |
|
Fixed wing+DG6M |
|||||
|---|---|---|---|---|---|
|
GSD(cm) |
2 |
2.5 |
3 |
4 |
5 |
|
Flight height(m) |
212 |
266 |
319 |
425 |
532 |
|
Distance per flight(km) |
100 |
100 |
100 |
100 |
100 |
|
Coverage per flight(km2) |
4.41 |
5.52 |
6.76 |
9 |
11.56 |
|
No. of images per flight |
15770 |
12920 |
11040 |
8400 |
6750 |
|
No. of flights per day |
4 |
4 |
4 |
4 |
4 |
|
Coverage per day(km2) |
17.64 |
22.08 |
27.04 |
36 |
46.24 |
|
Rotary drone+DG6M |
|||||
|---|---|---|---|---|---|
|
GSD(cm) |
1 |
2 |
3 |
4 |
5 |
|
Flight height(m) |
106 |
212 |
319 |
425 |
532 |
|
Coverage per flight(km2) |
0.39 |
0.794 |
1.182 |
1.4 |
1.822 |
|
No. of images per flight |
5960 |
3020 |
2025 |
1440 |
1210 |
|
No. of flights per day |
12 |
12 |
12 |
12 |
12 |
|
Coverage per day(km2) |
4.68 |
9.53 |
14.18 |
16.80 |
21.86 |
FAQ
Which drones can the camera be adapted to?
DJI M210 V2 series, DJI M300 series and other Brand mainstream UAVs
What should be paid attention to when mounting other flight platforms?
The camera can be triggered to take pictures normally, and the voltage is sufficient; the camera should be placed at the center of gravity of the aircraft, and the front of the lens should not be blocked.
Camera trigger method?
Use the high and low level mode, and the low level triggers to take pictures.
What is the voltage range of the camera?
The voltage range is 10-27V, and the recommended voltage is 24V.

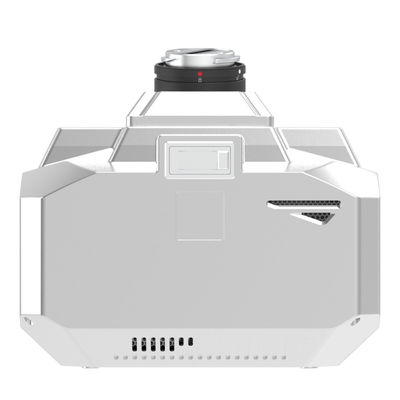

How to obtain the structural parts required for camera adaptation?
The camera is equipped with adapters in the box. There is a J30J interface on the rear of the camera, a PSDK adapter ring on the top, an adapter cable, a camera shock mount, etc. in the box. If you need other structural parts, please contact us by email.
