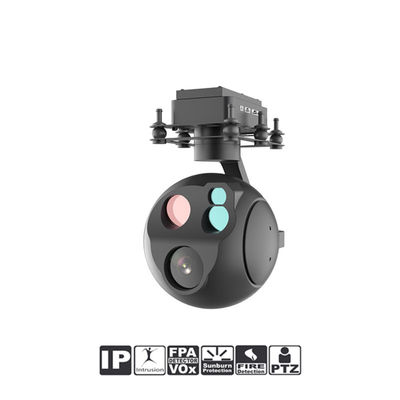

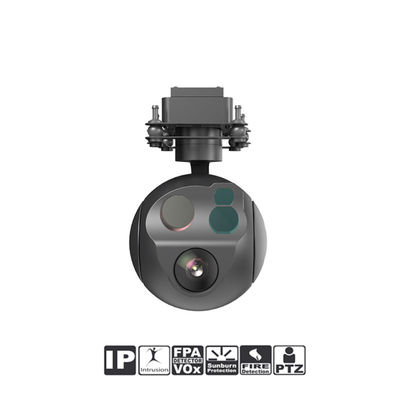

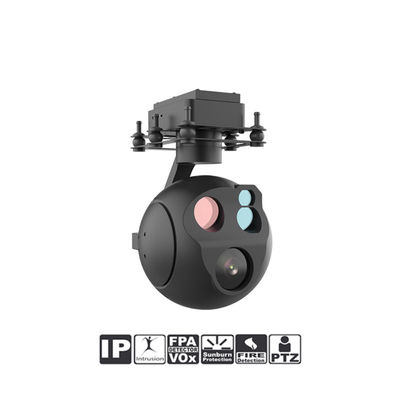

HXDC130P 640×512 Thermal Resolution 35mm Lens Laser Rangefinder 1.2KG Weight 30X Zoom UAV Drone Thermal Camera VTOL PTZ
Overview of HXDC130P
The HXDC130P drone pod is composed of ±1 meter accuracy, 2 km rangefinder, 640×512 thermal imager, 30 times high-definition optical camera, and high-stability precision platform frame. The XDC130P pod can perfectly complete the application tasks of industrial drones such as inspection, security, search and rescue. And can achieve long-distance positioning, point-of-interest targets day and night. 1080P full HD video, which can output visible light and infrared video to UAV ground station equipment in real time.
Applications
Four-axis UAV, multi-rotor Drone, fixed-wing UAV, VTOL.
Powerful Zoom System
4x digital zoom, 8 colors, stronger scene adaptability;
30x optical zoom, long-distance image collection, safer;
There are three modes: lock the head direction, weak somersault direction, and the camera vertically downward.
1080P HD Video
Advanced image processing algorithms can provide clear images with high temperature resolution, clear contours and wide dynamic range, reflecting subtle temperature differences and making the target clear at a glance;
1080p image compression storage, with 32G capacity memory card, makes the image capture ability stronger;
Can be used with image transmission equipment
Rich OSD information, real-time display of running status, safer, more reliable and more convenient operation;
|
Thermal Camera |
|
|---|---|
| Sensor | VOX |
| Resolution | 640×512 |
| Lens | 35mm |
| Fov | 12°×10°(±5%) |
| Color | 8 |
| Digital zoom | ×2,×4,×8 |
| Image storage | .jpg&PNG |
| Video storage | .avi |
| Visible Light Camera | |
|---|---|
| Resolution | 1920×1080 |
| Lens | 4.3mm～129mm |
| Fov | 63.7°～2.3° |
| Optical zoom | 30x |
| Defog | support |
| Image storage | .jpg |
| Video storage | .avi |
| Laser Range Finder | |
| Wavelength | 1540um |
| Max work distance | 2.0km |
| Accuracy | ±1m(for detect 1Km) |
| Servo platform | |
|---|---|
| X-axis | 360°×n |
| Y-axis | -120°～+90° |
| Z-axis | -60°～+60° |
| System value | |
| Start time | ≤30s |
| Power | DC20V～36V or 12V |
| Consumption | Common consumption ≤ 25W |
| Weight | ≤1.2Kg |
| Size | ≤131mm×155mm×208mm |
| Accuracy | ≤30m(300m) |
| Interface | |
| Control | RS422/RS232/S.BUS |
| Video | HDMI/SDI/Synchronous 422/100M network |
| Storage | Mini SD card/32G |
| Environment indicators | |
| Work temp | -20℃～＋50℃(-40℃ for option) |
| Storage temp | -40℃～＋60℃ |
| IP grade | Can work in moderate rain |
*We support Drone Thermal Camera according to your work scene needs.
*HX Drone Factory started the drone business in 2017, reliable R&D capability and manufacturing capability are our core competitiveness.
*We have a 7*24 Hours After-Sales Service Team, which can solve various problems you encounter through online chat and video conference.
*The goods can be sent to all over the world by international express within 7 days at the fastest.
