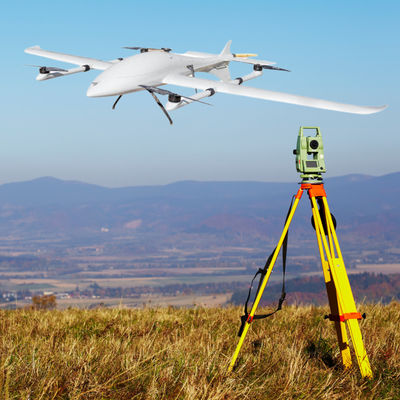

HXCETUS-240 1.6KG Load Weight With Surveying Tilt Camera 3.5Hours VTOL EV Power Plant Fixed-Wing Aerial Mapping Drone
HXCETUS-240 VTOL can mount a variety of pods to complete different tasks.
3.5h endurance 1.6kg payload
Light weight, high strength and strong anti-interference capability.
Highly Advanced Aerodynamic Design
Unique tail-wing design. The whole tail is designed as an elevator, greatly improves the aircraft lift.
Rround Control Station With Video/Data/RC
all in one can realize drone control, data and video transmission, route planning, real-time flight status feedback and other functions.
| Basic Parameters HXCETUS-240 |
|
|---|---|
| Type | VTOL Aerial Mapping Drone |
| Wingspan | 240cm |
| Length | 151cm |
| Clearance to Ground | 16cm |
| Max. Take-off Weight | 10kg |
| Max Payload | 1.6kg (excluding battery) |
| Wind Resistance | 10.7m/s |
| Endurance | 3.5hours (2x 6S 16000mAh) |
| Material | Carbon Fiber |
| RTF Weight | 5.1kg (no battery, no payload) |
| Stall Speed | 15m/s |
| Suggested Flight Altitude | 0-3000m |
| Working Temperature | -20℃~50℃ |
| Suggested Cruising Speed | 19m/s |
| Usage | mapping, survey |
| OEM | Available |
FAQ for Product & Brand Customization
Q1. Can you customize according to my requested Aerial Mapping Drone parameters?
A: Yes. We have the support of the entire industry chain of industrial drones, so we can not only carry out the R&D, design, and production of industrial drones according to your requirements, but also give you many constructive suggestions based on our past case experience.
Q2. Can I make a sample order for custom drone?
A: Yes, we welcome sample order to test and check out quality.
Different samples in an order are acceptable.
Q3. Is it OK to print my logo on product?
A: Yes.
Q4. What about the lead time?
A:Sample needs 7-10 days.
Q5. Do you have any MOQ limit for drone?
A: We don't have any MOQ, 1piece is acceptable.
Q6. How do you ship the order and how long does it take to arrive?
A: We usually ship by air transportation.
It takes around 7-12 days to arrive in most situations. Sea transportation is also available.
Q7. How to make an order for drone?
Step1: Let us know your requirements.
Step2: We quote according to your requirements or our suggestions.
Step3: Customer confirms the order and places deposit for formal order.
Step4: We arrange the production.
