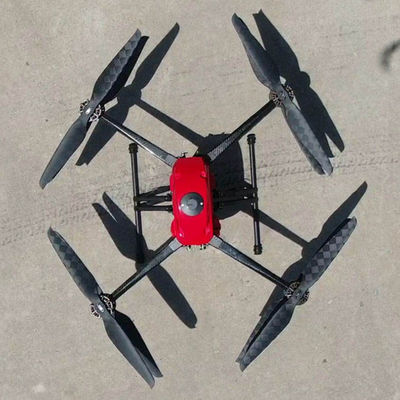

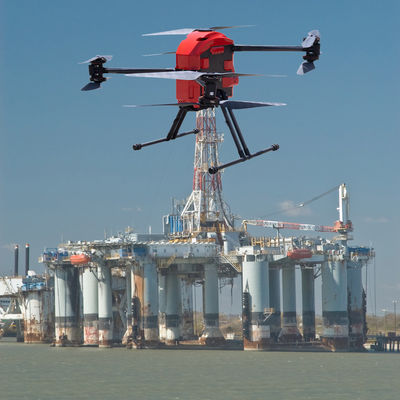

HXN1-R 815mm Wheelbase 1.4Hours Endurance Carbon Fiber -10℃~55℃ Working Temperature 8-Rotor Multi-Rotor Security UAV
☑A Variety of Different Mounts Can Be Loaded
The bottom of the UAV has a variety of interfaces, mechanical quick-release parts, and can support single-light, double-light, three-light pods, megaphones, high beams,
Logistics delivery boxes, drop boxes, steering gear gimbals, orthographic cameras, oblique photography, lidar systems, multi-spectral, hyperspectral, and other mounting systems.
☑Navigation Light Mode
There is a navigation light system on the motor base, with three modes of exhalation flash, flash, and light off, and the navigation light effect can be used in different flight environments
☑Foldable Body
The flexible and flexible design of the folding body makes the operation easy. Even in unknown areas, HXN1-B can use various professional surveying and mapping cameras to collect geographic information and generate accurate orthophotos or 3D maps without being limited by geographic terrain.
☑Technological Material
HXN1-R is made of carbon fiber, CNC, and PCB. The material is light, and the drone + battery is only 5.4kg.
☑Double Flight Safety Guarantee
When the HXN1-R series is in a low voltage state or signal loss state, the multi-rotor UAV will automatically trigger Return to Launch failsafe to save the situation.
☑Centimeter-Level Precise Positioning
Accurate horizontal positioning within 1cm error can be achieved, which can make your work more outstanding.
☑Simple Flight Operation
Clear setup steps make it easy for anyone to master. After connecting PC via WiFi/BT/USB on MissionPlanner/PC, industrial drone flight becomes programmable.
☑Use in Various Environments
Forged from a combination of carbon fiber, PCB and CNC, the drone is strong and durable, and can perform flight tasks in a wide temperature range of -10°C-55°C.
☑Long-Life Lithium-ion Battery
HXN1-B has a built-in 14S 14000mAh high-voltage lithium-ion battery, which increases the no-load flight time to 90 minutes, and can still reach 45 minutes with a 2.5kg load.
☑Dustproof & Moistureproof Design
A set of built-in antenna shields to keep out dust and moisture. Self-locking propellers install without tools.
☑Enable Team Work
Herelink can also be used as a streaming server to transmit video and data (WAN) between team members through devices such as Ipads, mobile phones or PCs, so that the team can participate in tasks at the same time.
HXN1-R is a small drone aerial photography platform with excellent performance for surveying, mapping, surveillance and inspection. At the same time, HXN1-B is a type of multi-rotor UAV. With its 90-minute battery life, centimeter-level positioning capabilities, IP66 rating, folding frame, and multiple failsafe features, it also packs utility into a tiny body.
|
HXN1-R Specification Security UAV |
|
|---|---|
| Drone Version | HXN1-R |
| UAV Material | Carbon Fiber, CNC, PCB |
| Controller | Herelink 2.4GHz Long Range HD Video Transmission System |
| IP Rating | IP65 |
| Service Ceiling | 6000m |
| Propeller | 22*8 inch |
| Working Voltage | 48V |
| Working Temperature | -10℃-55℃ |
| Carrying Case | 68cm*45cm*35cm |
| Hovering Precision | Vertical±0.2m; Horizontal±0.1m (no RTK) |
| Horizontal Positioning Accuracy | 0.01m+1ppm CEP(RTK) |
| Flight Time | 80min (no payload) |
| 68min (800g payload) | |
| 45min (2500g payload) | |
| Load Camera | 4K, HD, Thermal imaging |
| Max Speed | 30m/s |
| UAV Max Lifting Speed | 4m/s |
| UAV Max Descent Speed | 3m/s |
| Max Angle of Pitch | 25° |
| Wind Resistance | 14m/s |
| Unfolded Dimensions | 670*650*200mm (excluding propellers/landing gears) |
| Folded Dimensions | 440*210*200mm (excluding propellers/landing gears) |
| Diagonal Wheelbase | 815mm |
| Empty Weight | 5.4kg (including battery) |
| Battery Weight | 2.8kg |
| Max Take-off Weight | 15kg |
Purchasing FAQ?
1. Can I test a sample Security UAV with sample custom features?
Yes, we support sample testing.
Please tell us your needs and application scenarios, and we will recommend different solutions to discuss with you.
2. Can I create my own drone brand?
Yes, we can realize customizing your brand logo on drone operating system, drone body, accessories, packaging.
3. How can you ship to my country?
[DAP Mode - International Express] Usually it only takes 3~6 days, and the buyer pays the import duties.
[DDP Mode - Air Freight] Usually it only takes 12~16 days, that is, we help you prepay the import duties of your country, and you sign for the goods directly after they pass the customs.
4. Do you provide warranty?
Yes, if the product has quality problems within 1 year, we can provide free repair or replacement of spare parts.
5. Do you provide technical services?
Yes, all of our products come with free technical guidance, with installation instruction and operation video & PDF.
