HX330PRO 3 Transport Modes 3200mm Wingspan Length Load 3KG Package 2Hours VTOL UAV Delivery Inspection Industrial Drone
The HX330PRO vertical take-off and landing drone with a cargo box is a heavy-duty long-endurance VTOL for logistics and transportation, which can achieve a 2-hour load of 3 kg.
HX330PRO Features
- Adopt dual GPS differential design, which greatly improves positioning accuracy, anti-interference ability and flight stability.
- Equipped with 100m ranging single-point lidar, which can provide altitude detection during VTOL descent.
- Motor and propeller direction locking design reduces wind resistance in fixed-wing mode.
- The quick release design makes the aircraft easy to assemble and convenient to transport.
HX330PRO three cargo delivery modes
Pattern 1: throw-return
Shipping items are delivered to their destination - after descending to the desired height the package is thrown - back.
Mode 2: Automatic
Deliver the transport items to the destination, land and lock and throw the cargo for 10 seconds and take off automatically (the time can be set).
Mode 3: Land and lock
Shipping item delivered to destination - landed and locked - operator manually presses switch twice to pick up - operator takes a long time
Press the switch, the drone will take off and return after 10 seconds (the time cannot be changed).

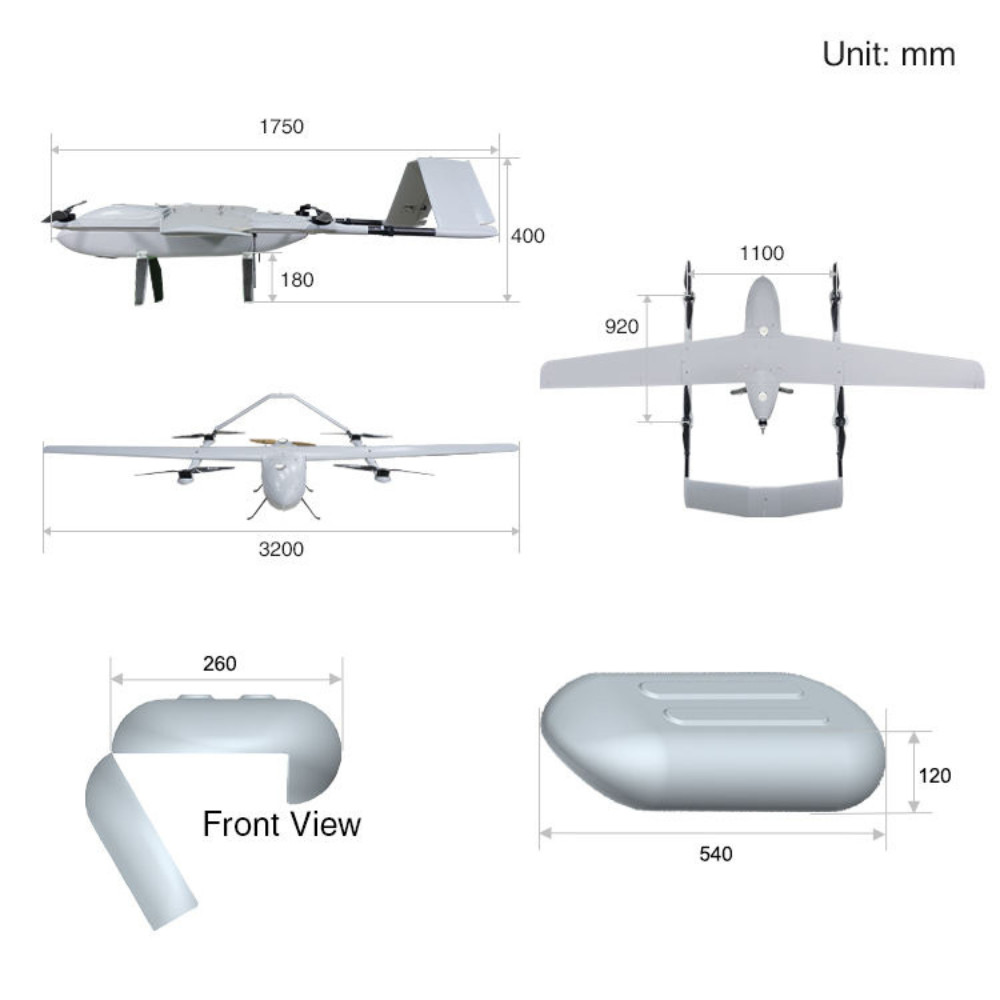

| HX330PRO Parameters Industrial Drone |
|
|---|---|
| Span Legngth | 3200mm |
| Custom function | Available |
| Length | 1750mm |
| Drone type | VTOL |
| Material | Kevlar, glass fiber, carbon fiber |
| RTF weight | 10KG (no battery, no load) |
| Maximum take-off weight | 24KG |
| Battery life | 2hours (4x6S 22000mAh,2x6S 12000mAh, 3kg) |
| Maximum payload | 3KG (without battery) |
| Maximum cruising speed | 32m/s |
| Recommended cruising speed | 22m/s |
| Stall speed | 8m/s |
| Maximum descent speed | 5m/s |
| Maximum flight altitude | 2000m |
| Operating Voltage | 48V |
| Operating temperature | -10℃~40℃ |
| Box size | 135cm*63cm*61.5cm |
Purchasing FAQ?
1. How can you ship to my country?
We cooperate closely with DHL, FEDEX, UPS and other international express companies, which can reach almost all places in the world. International express usually only takes 3~7 days.
2. Do I need to pay import duties?
We have a DDP logistics solution, that is, we will help you pay your country's import duties in advance, and then you can sign for the goods directly after they pass the customs.
3.Do you offer warranty?
Yes, we can provide free repair or spare parts replacement in case of product quality problem within 1 year
4. Does it provide technical services?
Yes, all products provide free technical guidance, and provide installation instructions video &PDF.
