10.1inch LCD Double Dual Screen Joystick Intel I5 CPU Windows10/Linux Computer UAV Drone Ground Control Station System
Handheld PC System Ground Station
HXT30S dual-screen integrated handheld ground station is a single-handed device with a high-definition dual-touch screen, integrated industrial-grade PC system and integrated link remote control system. It has remote control aircraft, remote control pan/tilt, real-time flight status feedback, and real-time remote control status. Feedback, route planning and other functions, Windows or LINUX system platform supports most of the ground station software in the market, industrial-grade computer and military-grade transmission link can not only ensure the safety and stability of the aircraft, but also easy to operate and easy to carry.

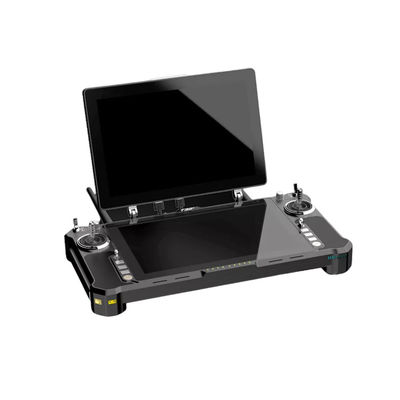

Industrial-grade High-definition Dual Touch Screen
High-definition highlight dual-touch screen design, support up and down split screen, main and secondary screen settings. The upper screen can be directly connected to external HDMI video data, and can also be used for computer expansion screen display.
The maximum resolution of the high-definition screen is 1920*1200, and the maximum brightness can reach 800NIT.
All aviation aluminum body, narrow cabinet design, ultra-light and ultra-portable
Compatible with Most Flight Control Systems
Universal platform, suitable for most flight control systems on the market;
The integrated design of numerical control and remote electricity makes it convenient for individual soldiers to go out to work to the greatest extent;
The three-band all-one communication link supports 800MHz, 1.4GHz, and 2.4GHz at the same time. Users can set software according to their needs, and the communication distance is 10km+
Programmable, Output
Original programmable dual SBUS independent output, one machine with two uses, control the aircraft and control the mount, you can set whatever you want;

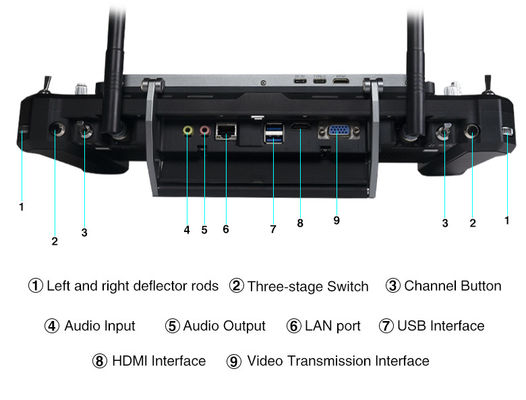

There are many external output interfaces. 6 serial ports, with TTL, RS232, RS485, RS422 interfaces, and expandable aviation plug interface;
WIFI, BULETOOTH, 4G, Gigabit Ethernet port, HDMI output, built-in high-fidelity audio, and external monitoring headphones can also be connected.
| T30s Ground Station Control System | |
|---|---|
| Software (sbus) | Dual Sbus Independent, with Hid Input |
| Video Transmission System Vedio TR | Built-in |
| Joystick Type Stick | Professional Joystick/hall Remote Rod |
| Aisle | 23 Channels |
| Remote Delay | 40ms |
| Auxiliary channel and quantity | Main Rocker×2, |
| Three gear switch × 4, | |
| Knob switch × 2, | |
| Key switch × 11, | |
| Wheel × 2, | |
| Remote Control Distance | 5-30km |
| RF power | V20: 0.1W-1W adjustable |
| V30: 0.1-1W adjustable | |
| Working Frequency | 800MHZ/902-928MHZ |
| 1.4Ghz/2.3Ghz/2.4GHZ/2.5GHZ | |
| Antenna | 4dB stick antenna (other antennas can be connected externally) |
| Battery Capacity | 12V/12000mAH, external battery can be installed |
| Battery Life | 5 hours |
| Display Screen | 10.1 inch industrial touch screen + sunlight visible screen (800-1000ccd) |
| Resolution | 1920*1200 |
| Processor | Intel i7 5500U |
| Memory | 4GB/8GB |
| Storage | 64GB/128GB (optional) |
| Tablet Operating System | Windows 10 |
| TP | 10-point capacitive touch screen |
| Network Interface | 4G/WIFI |
| External Interface | USB3.0, 4G card slot, LAN port, audio, power amplifier, HDMI |
| Serial Interface | TTL,RS232 ,RS485,RS422 interface |
| Charging Interface | XT30/DC 12.6V |
| Three Defense Features | IP53 |
| Operating Temperature | -10~+60℃ |
| Total Weight | 1900g |

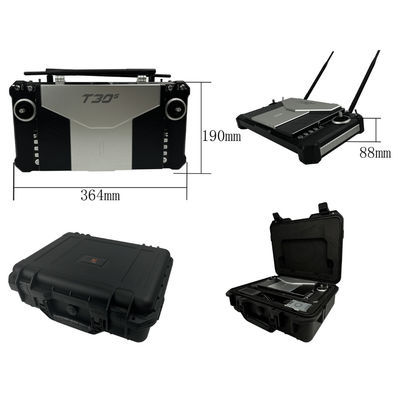

| Total Measurement | 364mm(l)*190mm(w)*40mm(h) |
FAQ for Product & Brand Customization
Q1. Can you customize according to my requested UAV Ground Station Computer parameters?
A: Yes. We have the support of the whole industry chain of UAV ground stations, so we can not only carry out the research and development, design and production of UAV systems according to your requirements, but also give you many constructive suggestions based on our past case experience .
Q2. Can I make a sample order for custom drone?
A: Yes, we welcome sample order to test and check out quality.
Different samples in an order are acceptable.
Q3. What about the lead time?
A:Sample needs 7-10 days.
Q4. Do you have any MOQ limit for drone?
A: We don't have any MOQ, 1piece is acceptable.
Q5. How do you ship the order and how long does it take to arrive?
A: We usually ship by air transportation.
It takes around 7-12 days to arrive in most situations. Sea transportation is also available.
Q6. How to make an order for drone?
Step1: Let us know your requirements.
Step2: We quote according to your requirements or our suggestions.
Step3: Customer confirms the order and places deposit for formal order.
Step4: We arrange the production.
