10kg Class Quadrotor UAV Pesticide Spraying Drone Customized Four Rotor Drone
| MOQ: | Negotiable |
| Price: | Negotiable |
| Standard Packaging: | Carton Case |
| Delivery Period: | 7 - 15 working Days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 200 Unit/Units per Month |
Detail Information
Place of Origin
China
Brand Name
SmartSeem
Body Size:
1400x1400x700mm
Material:
Aviation Aluminum Alloy, Carbon Fiber
Duration Of Flight:
60min (no-load)
Maximum Rate Of Rise:
5m/s
Maximum Flight Altitude:
5000m
Highlight:
10kg Class Quadrotor UAV
,10kg Quadrotor UAV Pesticide Spraying Drone
,Customized Four Rotor Drone
Product Description

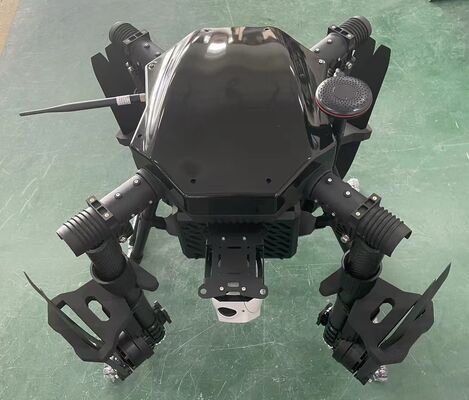

10kg Class Quadrotor UAV Pesticide Spraying Drone
Customized four-rotor drone for agricultural pesticide spraying and transportation applications.
Key Specifications
| Attribute | Value |
|---|---|
| Body size | 1400×1400×700mm |
| Material | Aviation aluminum alloy, carbon fiber |
| Duration of flight | 60min (no-load) |
| Maximum rate of rise | 5m/s |
| Maximum flight altitude | 5000m |
Product Overview
The DL 100 quadrotor UAV platform features a 60mm diameter payload capacity for agricultural spraying applications. This versatile drone supports both manual operation and automated route planning.
Core Features
- Dual operation modes: Manual control and pre-programmed route planning
- Advanced navigation: Imaging setup with coordinate input capability
- Precision positioning: Satellite navigation system (GPS/GLONASS/BDSS)
- Robust construction: Aviation-grade aluminum alloy and carbon fiber frame
- Extended operation: Operates in temperatures from -20℃ to 60℃
Technical Specifications
| Parameter | Value |
|---|---|
| Storage size | 600×600×700mm |
| Body weight | 8kg (without battery) |
| Maximum loading | 10kg |
| Maximum rate of decline | 5m/s |
| Maximum wind resistance | Level 6 |
| Ceiling altitude | 1000m |
| Maximum flying speed | 20 m/s (no wind) |
| Maximum control distance | 10km (without interference) |
| Suspension accuracy | Vertical: ±0.5m, Horizontal: ±1m (with GPS) |
| Cloud platform camera | 4K HD with 10x zoom, cursor calibration |
| Power system | Integrated FOC power system |
| Waterproof rating | Moderate rain resistance |
| Battery | Smart battery: 14S 54000mAh |
| Payload loading time | 30 seconds |
Operational Capabilities
The UAV features multiple delivery methods including sequential single-drop and one-key mass deployment. The advanced imaging system provides high projection accuracy with cross-cursor targeting and one-key down functionality.
