30 km Fiber Optic Cylinder for FPV Systems Long Distance Data Transfer
| MOQ: | 1.Product Parameters Product Model FO-0.25-9 Fiber Length 30,000 M Product Name Standard resin-coated optical fiber Fiber Type G657A2 Sheath Material High-strength resin Unit Weight 80 g/km Cable Outer Diameter 0.25 mm ± 0.01 Operating Temperature -40°C t |
| Price: | 1.Product Parameters Product Model FO-0.25-9 Fiber Length 30,000 M Product Name Standard resin-coated optical fiber Fiber Type G657A2 Sheath Material High-strength resin Unit Weight 80 g/km Cable Outer Diameter 0.25 mm ± 0.01 Operating Temperature -40°C t |
| Standard Packaging: | Carton Case |
| Delivery Period: | 7-15 working days |
| Payment Method: | T/T,Western Union |
Detail Information
Place of Origin
CHINA
Brand Name
SMARTSEEM
Model Number
30KM
Flighttime:
30-60 Minutes
Propeller:
36in
Symmetric Wheelbase:
2150mm
Working Voltage:
25.8v（6s)
Power Plug:
AS150U/XT90 Series Connection
Takeoff Weight:
90kg
Cameraresolution:
4K UHD
Arm Dimensions:
40mm Carbon Fiber Tube
Weatherresistance:
IP54 Or Higher
Unfold Size:
1850*1620*670mm
Fixed Method:
Plug-in Dual Electric Version
Expanded Size:
1230 * 869 * 918mm (folded)
Load:
50kg
Delivery:
Worldwide
Batterytype:
Lithium-Polymer (Li-Po)
Highlight:
30 km Fiber Optic Cylinder
,FPV Systems Fiber Optic Cylinder
Product Description

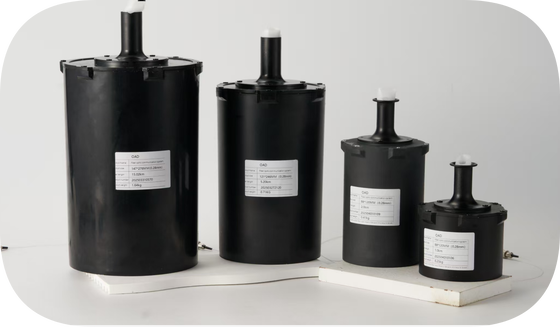

30 km Fiber Optic Cylinder for FPV Systems
Product Overview
Fiber optic cylinder for FPV systems with a page-listed 30 km distance.
Applications
Suitable for fiber-optic FPV system integration where the listed distance is required.
30KM Fiber Optic Cylinder for FPV 2026
This standard resin-coated tight-buffered optical fiber is engineered for communication applications in extreme environments with strong electronic interference and no signal conditions. Featuring G.657A2 optical fiber and invisible transparent resin sheath, it delivers exceptional bending resistance and ultra-lightweight performance for high-altitude, stable environments with stringent weight and volume requirements.
Product Specifications
| Product Model | FO-0.25-9 | Fiber Length | 30,000 M |
|---|---|---|---|
| Product Name | Standard resin-coated optical fiber | Fiber Type | G657A2 |
| Sheath Material | High-strength resin | Unit Weight | 80 g/km |
| Cable Outer Diameter | 0.25 mm ± 0.01 | Operating Temperature | -40°C to +85°C |
| Tight-buffered Color | Invisible transparent | Fiber Tensile Strength | 60N |
| Optical Interface | FC/FC (Standard) | ||
Fiber Attenuation Parameters
| Wavelength | 1310nm | 1550nm |
|---|---|---|
| Specification Value | ≤0.35 dB/km | ≤0.25 dB/km |
| Typical Value | 0.329 dB/km | 0.185 dB/km |
Packaging Information
Cable Pay-off Box
| Material | ABS (Black) | Size | 147x276mm |
|---|---|---|---|
| Total Weight (Including Fiber) | 2.85kg | Accessories | Straight tube, Elbow tube |
Transport Packaging
| Single Box Packaging | 480x205x175mm | Single Box Weight | 0.45kg |
|---|---|---|---|
| Six-box Packaging | 480*410*510mm (1.2kg) | Nine-box Packaging | 590*475*515mm (1.5kg) |
